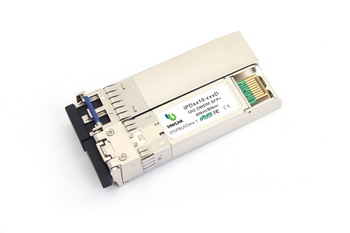

DWDM SFP+ ER/ZR
Support 9.95 Gbps to 11.3Gbps
Complaint to SFP+ MSA
Compliant to IEEE 802.3ae 10GBASE-ZR
Compliant with OC-192 / SDH STM LR2
Maximum Link Length of 80 km
Temperature-stabilized DWDM EML Transmitter
23 dB Power Budget at Least
100 or 50GHz ITU Grid, C Band
SFF-8472 Digital Diagnostic Function
AC/AC Coupling according to MSA
Single +3.3 V Power Supply
RoHS 6/6 Compliant
Operating Temperature:0~70℃
Class 1 Laser International Safety Standard IEC-60825 Compliant
Complaint to SFP+ MSA
Compliant to IEEE 802.3ae 10GBASE-ZR
Compliant with OC-192 / SDH STM LR2
Maximum Link Length of 80 km
Temperature-stabilized DWDM EML Transmitter
23 dB Power Budget at Least
100 or 50GHz ITU Grid, C Band
SFF-8472 Digital Diagnostic Function
AC/AC Coupling according to MSA
Single +3.3 V Power Supply
RoHS 6/6 Compliant
Operating Temperature:0~70℃
Class 1 Laser International Safety Standard IEC-60825 Compliant
Infomation
|
Ordering Information---10G DWDM SFP+ ER/ZR |
|||||||
|
Part No. |
Data Rate |
Wavelength |
Distance |
Output Power |
Sensitivity |
Source |
Fiber typ |
|
DWDM SFP+ ER |
9.95~11.3Gb/s |
1528.77~1563.86nm |
40km |
-1~+2dBm |
≤-17.0dBm |
EML+PIN |
SM |
|
DWDM SFP+ ZR |
9.95~11.3Gb/s |
1528.77~1563.86nm |
80km |
0~+4dBm |
≤-24.0dBm |
EML+APD |
SM |
